Specialty Display

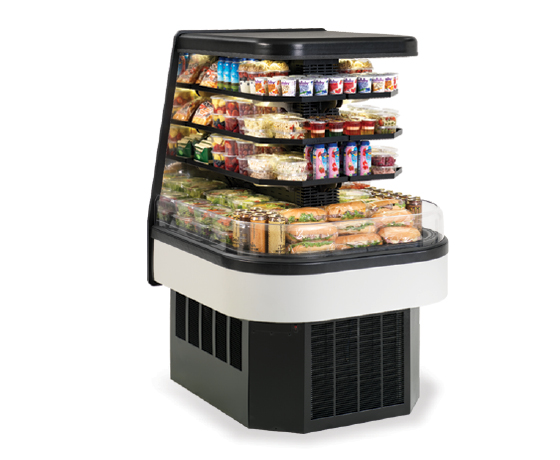

End Cap Refrigerated Self-Serve Display Cases

Designed with impulse sales in mind. Get maximum return and increased profits by putting the food where the people are.

Standard Features

Black metal base, interior and canopy. Choice of six standard laminates on exterior. Other color laminates are optional
Air Deflector
Easily accessible light switch and temperature control
Insulated with high-density foam
Adjustable Lg Levelers
Condensate pump provided.
Easy clean, rust-proof insulated evaporator coil compartment
Refrigeration controls maintain 38º-40° F. Note: Case temperature will vary if the air curtain is disrupted
Starting January 1, 2025, R449a refrigerant will be replaced by R454c
Thermometer
Adjustable black metal shelves, three tiers
3500K LED top and under shelf lighting.
DLC Certified, IP66 rated.
UL Safety & UL Sanitation listed to NSF Standard No. 7
DOE 2017 Compliant

Special Color Laminated Exterior Finish
Recessed Casters or Legs
Cord and Plug (20 AMP)
Remote Refrigeration (R449a Refrigerant, EEV Included).
Cart Bumper
Large-Capacity Condensate Evaporator Assembly (Field Install) (Separate 208/240V, 20A Circuit Required) ECSS60SC Only

Click the Model Number below for the Specific KCL / CAD / REVIT Drawing

Model	Description	Dimensions
ECSS40SC	End Cap Refrigerated Self-Serve Display Case	40" X 40" X 60"
ECSS60SC	End Cap Refrigerated Self-Serve Display Case	60" X 40" X 60"
