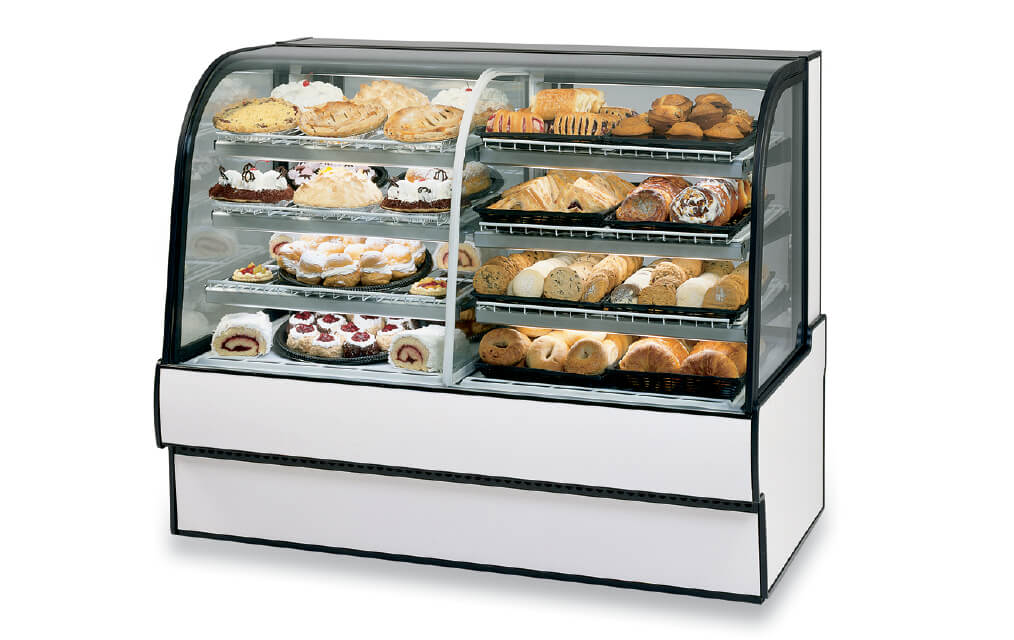

Curved Glass

Dual Zone

Sleek curved glass styling blends with traditional design elements to maximize performance. Designed for continuous case lineups.

Standard Features

  • Curved glass styling.
  • Single base design.
  • Left side refrigerated, right side non-refrigerated from customer view.
  • Tempered thermopane tilt-out front glass for easy cleaning. Front glass is curved for high visual product display.
  • Tempered thermopane glass ends and doors.
  • Removable sliding rear doors, shelf lights, shelf supports and shelves.
  • Steel base construction with a choice of six standard laminates on base. Other finishes optional.
  • Black trim, others optional.
  • White scratch-resistant display deck.
  • Adjustable Leg Levelers
  • Condenser air filter on self-contained models.
  • Thermometer.
  • Condensate evaporator provided for a totally self-contained system.
  • Oversized coil and low velocity fan system maintains high humidity and product freshness.
  • Easy clean, rustproof insulated evaporator coil compartment.
  • Adjustable temperature control.
  • Average case temperature of 38° to 40° is maintained.
  • Rear access to the refrigeration system for quick and easy service.
  • R513a Refrigerant (R449a in Remote Applications)
  • Adjustable white wire shelves. Shelves are adjustable up and down and can also be tilted in three positions. 48" models have three tiers of shelves; 42" models have two tiers of shelves.
  • 3000K LED top light and shelf lights.
  • UL Safety & UL Sanitation listed
  • DOE 2017 Compliant

Product Options

  • Special Base Finish
  • Glass Shelves
  • Rear Wrapping Board
  • Cord & Plug
  • Remote Condensing Unit (EEV Included)
  • Black, Gold, or Chrome Wire Shelves
  • Reflective Ends
  • Package Shelf
  • Top Cutting Board, White
  • White or Mirrored Interior Ends With Laminated Exterior
  • Reflective Rear Doors
  • 2 1/2" or 4"Casters/Cord & Plug Included (Self-Contained Models Only)
  • 6"Legs
  • LED Light Below Package Shelf
  • Front Glass and Rear Door Locks
  • Joining Kit for Continuous Line-Ups


      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
Model Description Dimensions
CGR5042DZ Dual Zone 50.13" X 35.31" X 42.00"
CGR5048DZ Dual Zone 50.13" X 35.31" X 48.00"
CGR5942DZ Dual Zone 59.13" X 35.31" X 42.00"
CGR5948DZ Dual Zone 59.13" X 35.31" X 48.00"
CGR7742DZ Dual Zone 77.13" X 35.31" X 42.00"
CGR7748DZ Dual Zone 77.13" X 35.31" X 48.00"
