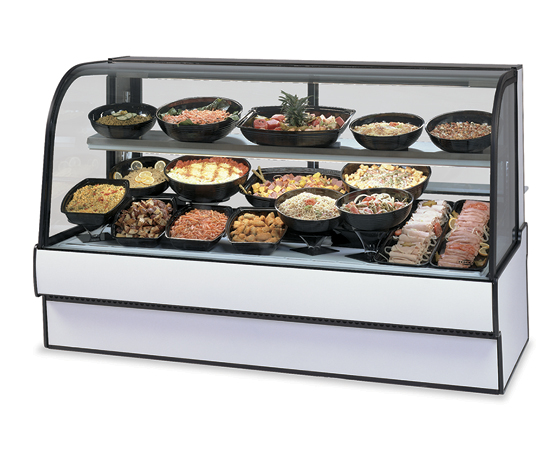

Curved Glass

Refrigerated Deli

Sleek curved glass styling blends with traditional design elements to maximize performance. Designed for continuous case lineups without middle end glass.

Standard Features

  • Curved glass styling.
  • Removable rear wrapping board.
  • Tempered thermopane tilt-out front glass for easy cleaning. Front glass is curved for high visual product displays.
  • Tempered thermopane glass ends and doors.
  • Removable sliding rear doors, shelf light, shelf supports and shelf.
  • Steel base construction with a choice of six standard laminates on base. Other finishes optional.
  • Condenser air filter on self-contained units.
  • Thermometer.
  • Removable, scratch-resistant, rustproof white display deck.
  • Easily accessible light switch and adjustable temperature control.
  • Rear access of the refrigeration system for quick and easy service.
  • Black trim.
  • Designed for continuous line-ups.
  • Adjustable Leg Levelers
  • Condensate evaporator provided for a totally self-contained system.
  • Oversized coil and low-velocity fan system maintains high humidity and product freshness.
  • Easy clean, rustproof insulated evaporator coil compartment.
  • Average case temperature of 36° F to 38° F is maintained.
  • R513a Refrigerant (R449a in Remote Applications)
  • Adjustable full-length stainless steel lighted mezzanine shelf. Shelf is adjustable up and down and can also be tilted in three positions.
  • 3000K LED top and shelf lights.
  • DLC Certified, IP66 rated
  • UL Safety & UL Sanitation listed
  • DOE 2017 Complaint

Product Options

  • Special Base Finish
  • Additional Mezzanine Shelf
  • Cord & Plug
  • Remote Refrigeration (EEV Included).
  • Reflective Ends
  • White or Mirrored Interior Ends With Laminated Exterior
  • Casters (Self-Contained Models Only) Cord & Plug Included
  • Reflective Rear Doors
  • Legs
  • Top Cutting Board, White
  • Package Shelf
  • LED Light Below Package Shelf
  • Front Glass and Rear Door Locks
  • Joining Kit for Continuous Line-ups
  • Scale Stand
  • Step Riser or Pan Holder
  • Glass Mezzanine Shelf
  • Additional Mezzanine Shelf


      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
Model Description Dimensions
CGR3148CD Refrigerated Deli 31.13" X 35.31" X 48.00"
CGR3642CD Refrigerated Deli 36.13" X 35.31" X 42.00"
CGR3648CD Refrigerated Deli 36.13" X 35.31" X 48.00"
CGR5042CD Refrigerated Deli 50.13" X 35.31" X 42.00"
CGR5048CD Refrigerated Deli 50.13" X 35.31" X 48.00"
CGR5942CD Refrigerated Deli 59.13" X 35.31" X 42.00"
CGR5948CD Refrigerated Deli 59.13" X 35.31" X 48.00"
CGR7742CD Refrigerated Deli 77.13" X 35.31" X 42.00"
CGR7748CD Refrigerated Deli 77.13" X 35.31" X 48.00"
