Curved Glass

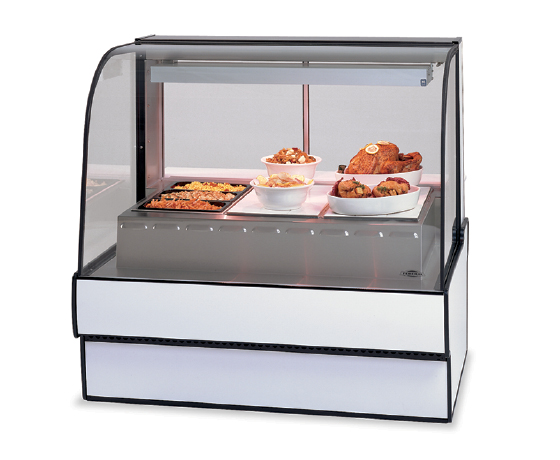

CG5048HD

Hot Deli

Sleek curved glass styling blends with traditional design elements to maximize performance. Designed for continuous case lineups without middle end glass.

Standard Features

  • Curved glass styling.
  • Designed for wet or dry heat.
  • Curved tempered tilt-out front glass for easy cleaning.
  • Tempered glass ends and doors.
  • Stainless steel deck.
  • Steel base construction with a choice of six standard laminates on base. Other finishes optional.
  • Removable sliding rear doors with moisture vents. The moisture vents and a forced air front-glass defogger prevent excess moisture buildup.
  • Heating wells are one-piece stainless steel. Each well is heated with its own cal-rod heating element and is controlled by its own thermostat. Each well has a drain and valve.
  • Top-mounted, full-length infrared heater provides uniform product temperature.
  • Rear wrapping board.
  • Each well holds a full-size pan.
  • Black trim.
  • Designed for continuous line-ups.
  • Adjustable Leg Levelers.
  • Incandescent lighting provides even product illumination.
  • UL & UL Sanitation listed.

Product Options

  • Special Base Finish
  • Reflective Ends
  • White Ends or Mirrored Interior Ends with Laminated Exterior
  • Reflective Rear Doors
  • Legs
  • Top Cutting Board, White
  • Package Shelf
  • Light Below Package Shelf
  • Front Glass and Rear Door Locks
  • Scale Platform
  • Joining Kit for Continuous Line-ups

Models

      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
Model Description Dimensions
CG5048HD Hot Deli 50.13" X 35.31" X 48.00"
CG5948HD Hot Deli 59.13" X 35.31" X 48.00"
CG7748HD Hot Deli 77.13" X 35.31" X 48.00"
