Vision Series
VHSS3660S sq glass end green lam high res copy

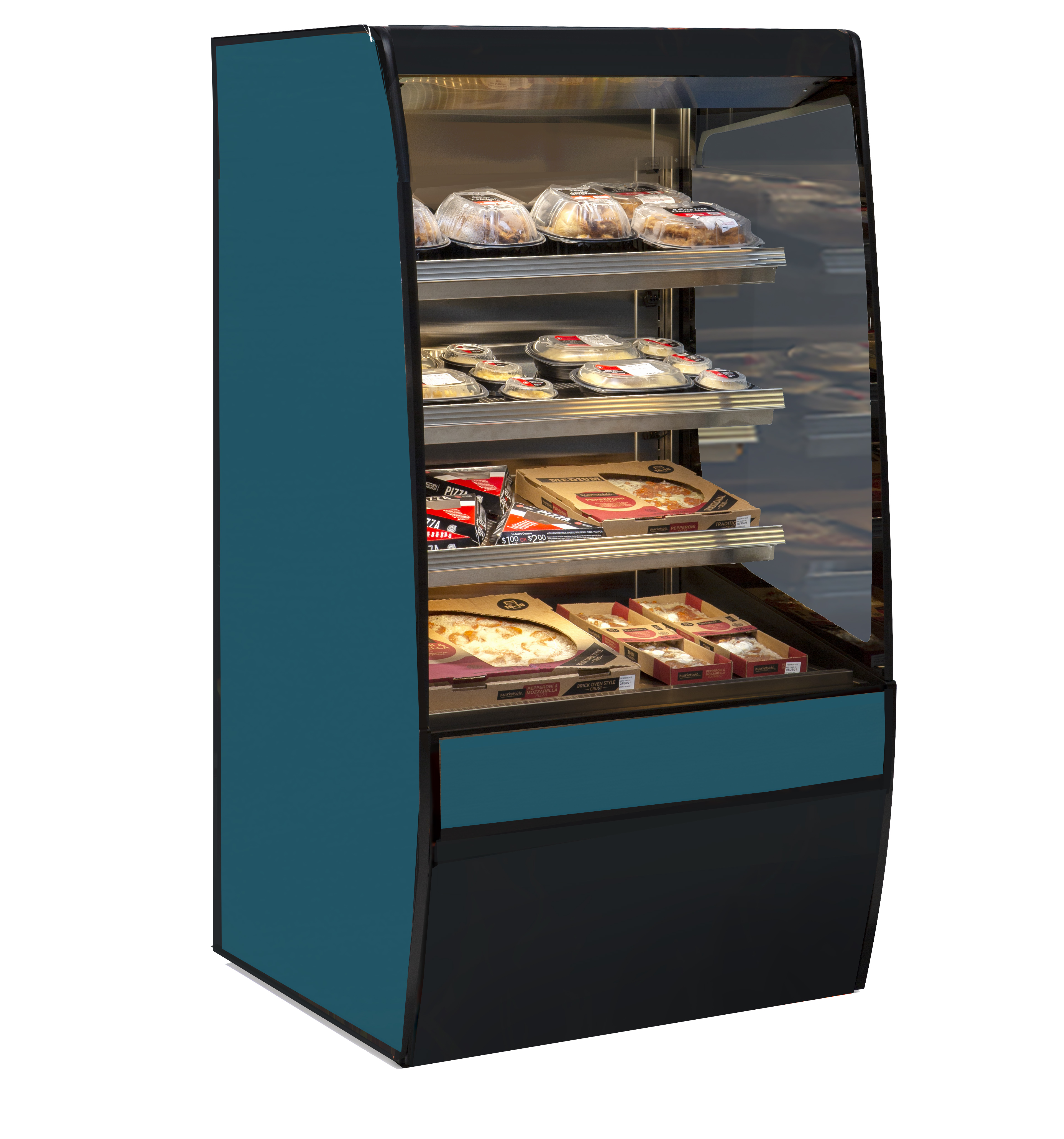

Vision Series - Curved End Self-Serve Heated Display Cases - 60"

Designed for customers looking to increase grab-and-go sales of heated packaged products or to complement refrigerated offering.

Standard Features

Model Features:

  • Stainless steel interior including shelves
  • Removable, heated stainless steel display deck
  • Tempered glass ends
  • Black powder coated base frame
  • Moisture resistant end panel construction
  • Choice of standard colors on lower millwork panel
  • Black trim
  • Adjustable leg levelers
  • Cord & plug
  • Matches profile of the VRSS & VNSS models

Heating System:

  • Independently controlled heated shelves and deck, that are easily adjusted or replaced
  • Holds product up to an average temperature of 160oF (71oC)
  • Easy front access digital temperature controls

Shelving:

  • 4 Tiers of adjustable, heated, stainless-steel shelves with price tag molding on 1 1/8" centers
  • Shelves can be flat or slanted down at 10o

Lighting:

  • 3500K LED Top Light

Agency Approvals:

  • UL, C-UL, and UL Sanitation listed to NSF-4



Product Options

  • 3500K LED lights below shelves
  • Stainless steel exterior finish
  • Premium exterior laminate
  • Graphics package
  • Solid end panels (mirrored interior)
  • Reflective end glass
  • Clear or reflective sliding rear (Solid hinged on 24" cases)
  • Front cart bumper
  • 6" legs (152mm)
  • Seismic legs
  • Skirt w/2" casters or legs
  • Skirt w/ 4" casters or legs
  • 2 1/2" (63.5mm) recessed casters
  • 4" (101.6mm) casters
  • Joining kit for continuous line-ups (not available with casters)
  • Front wire display basket

Models

      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
ModelDescriptionDimensions
VHSS2460CCurved End, Self-Serve, Heated24" X 33" X 60"
610 x 838 x 1524 (mm)
VHSS3660CCurved End, Self-Serve, Heated36" X 33" X 60"
914 x 838 x 1524 (mm)
VHSS4860C Curved End, Self-Serve, Heated47.25" X 33" X 60"
1200 x 838 x 1524 (mm)
