Vision Series

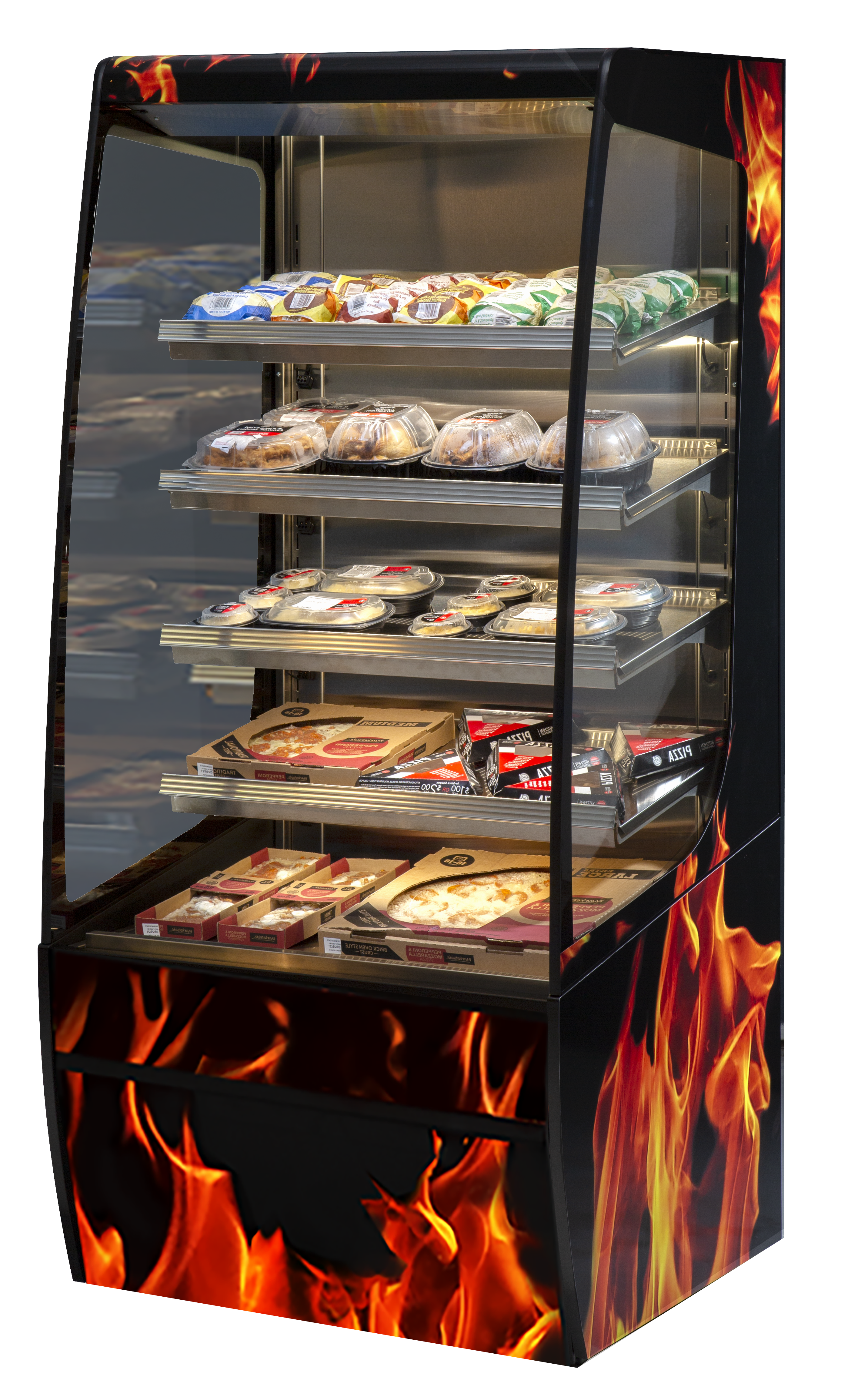

VHSS3678 curved glass end fire wrap left facing - high res copy

Vision Series - Curved End Self-Serve Heated Display Case - 78"

Designed for customers looking to increase grab and go sales of hot packaged products or to complement refrigerated offering.

Standard Features

Model Features:

  • Stainless steel interior including shelves
  • Removable, heated stainless steel display deck
  • Tempered glass ends
  • Black powder coated base frame
  • Moisture resistant end panel construction
  • Choice of standard colors on lower millwork panel
  • Black trim
  • Adjustable leg levelers
  • Cord & plug
  • Matches profile of the VRSS & VNSS models

Heating System:

  • Independently controlled heated shelves and deck, that are easily adjusted or replaced
  • Holds product up to an average temperature of 160oF (71oC)
  • Easy front access digital temperature controls

Shelving

  • 4 Tiers of adjustable, heated, stainless-steel shelves with price tag molding on 1 1/8" centers
  • Shelves can be flat or slanted down at 10o

Lighting

  • 3500K LED Top Light

Agency Approvals

  • UL, C-UL, and UL Sanitation listed to NSF-4

Product Options

  • 3500K LED lights below shelves
  • Stainless steel exterior finish
  • Premium exterior laminate
  • Graphics package
  • Solid end panels (mirrored interior)
  • Reflective end glass
  • Clear or reflective sliding rear (Solid hinged on 24" cases)
  • Front cart bumper
  • 6" legs (152mm)
  • Seismic legs
  • Skirt w/2" casters or legs
  • Skirt w/ 4" casters or legs
  • 2 1/2" (63.5mm) recessed casters
  • 4" (101.6mm) casters
  • Joining kit for continuous line-ups (not available with casters)
  • Front wire display basket

Models

      Click the Model Number below for the Specific KCL / CAD / REVIT Drawing
ModelDescriptionDimensions
VHSS2478CCurved End, Self-Serve, Heated24" X 33" X 78"
610 x 838 x 1981 (mm)
VHSS3678CCurved End, Self-Serve, Heated36" X 33" X 78"
914 x 838 x 1981 (mm)
VHSS4878CCurved End, Self-Serve, Heated47.25" X 33" X 78"
1200 x 838 x 1981 (mm)
