Vision Series
VRSSS 60

Vision Series - Square End Self-Serve Refrigerated Display Case - 60"

Designed with impulse sales in mind. Get maximum return from an attention-grabbing case and increase profits.

Standard Features

Model Features:

  • Black interior including shelves
  • Stainless steel display deck
  • Tempered glass ends
  • Black powder coated base frame
  • Moisture resistant end panel construction
  • Choice of standard colors on lower millwork panel
  • Black trim
  • Adjustable leg levelers
  • Cord & plug
  • Front air intake / front & rear discharge
  • Energy saving night curtain
  • Matches profile of the VRSS & VHSS models







Refrigeration:

  • R449a refrigerant
  • Electronic temperature control maintains 38o-40oF (3.3o-4.4oC) Note: Case temperatures will vary if the air curtain is disrupted.
  • Digital thermometer
  • Clear coil on demand defrost
  • Coated evaporator coil
  • Universal breathe (Front air in with front or rear air out) (Rear air in and out optional)

Shelving:

  • Two tiers of adjustable black metal shelves with black price tag molding
  • Shelves can be flat or slanted down at 10o

Lighting:

  • 3500K LED top light

Agency Approvals:

  • UL, C-UL and UL Sanitation listed to NSF-7, Type II conditions (Model VRSS3660S is Type I).
  • DOE 2017 compliant



Product Options

  • 3500K LED lights below shelves
  • White interior (including shelves)
  • Stainless steel interior (including shelves)
  • Stainless steel or glass shelves in lieu of black
  • Deli meat pegs
  • Additional lighted 3500K LED shelf
  • High-capacity condensate evaporator assembly
  • Condensate evaporator assembly (field install) (separate 120V, 20A circuit required) (remote only)
  • Remote refrigeration with condensate pump (EEV included)
  • Self-cleaning condenser
  • Rear air intake and discharge
  • Stainless steel exterior finish
  • Premium exterior laminate
  • Graphics package
  • Solid end panels (mirrored interior)
  • Reflective end glass
  • Clear or reflective glass, sliding rear doors (Solid hinged on 36" cases)
  • 6" legs (152mm)
  • Seismic legs
  • Skirt w/2" casters or legs
  • Skirt w/4" casters or legs
  • 2 1/2" (63.5mm) recessed or 4" (101.6mm) casters (self-contained models only) (Weight limits may apply)
  • Joining kit for continuous line-ups (not available with casters)
  • Front wire display basket
  • Front cart bumper
  • Roll-Down locking security cover (black, white, or gray)
  • Black polycarbonate removable locking security cover

Models

ModelDescriptionDimensions
VRSS3660SSquare End, Self-Serve, Refrigerated36" x 33" x 60"
914 x 838 x 1524 (mm)
VRSS4860SSquare End, Self-Serve, Refrigerated47.25" X 33" X 60"
1200 x 838 x 1524 (mm)
VRSS6060SSquare End, Self-Serve, Refrigerated59.25" X 33" X 60"
1505 x 838 x 1524 (mm)
VRSS7260SSquare End, Self-Serve, Refrigerated71.25" X 33" X 60"
1810 x 838 x 1524 (mm)

Additional Information

VRSS60S - Spec Sheet VRSS & VNSS MANUAL VRSS - VNSS Quick Start Guide Laminates Find Sales Rep

More Vision Series Products

Vision Series - Square End Self-Serve Refrigerated Slide-In Counter Display Case - 60"

Vision Series - Square End Self-Serve Heated Slide-In Counter Display Case - 60"

Vision Series - Curved End Self-Serve Refrigerated - Quick Ship Display Case - 78"

VHSS3678 curved glass end fire wrap left facing - high res copy

Vision Series - Curved End Self-Serve Heated Display Case - 78"

Vision Series Slim-Line Display Cases 78"

Vision Series - Square End Self-Serve Refrigerated Display Case - 60"

VHSS3678 curved glass

Vision Series - Square End Self-Serve Heated Display Cases - 78"

Vision Series Milk Display Case

Vision Series - Curved End Self-Serve Non-Refrigerated Slide-In Counter Display Case - 60"

VNSS3678 curved solid end green case copy

Vision Series - Square End Self-Serve Non-Refrigerated Display Case - 60"

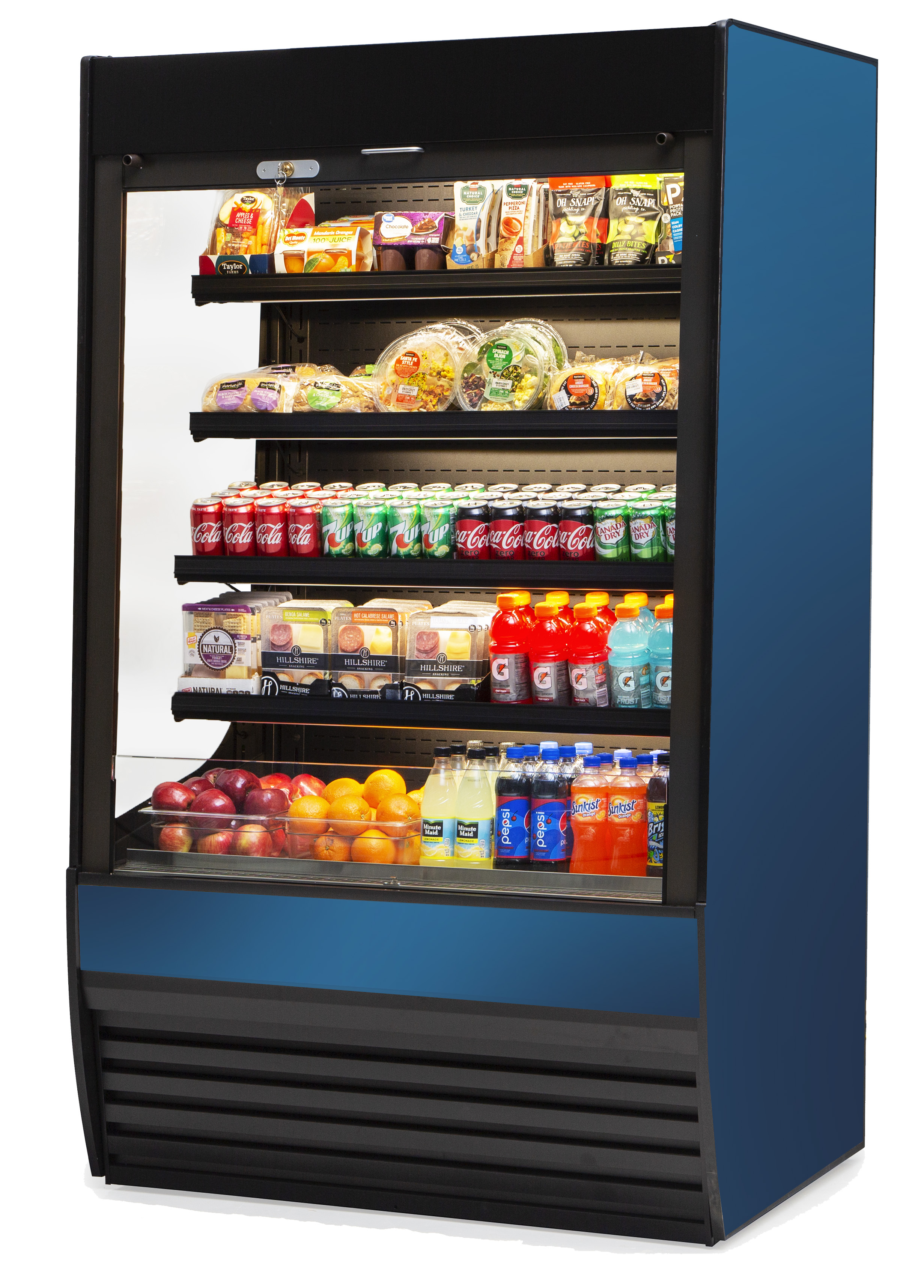

vrss4860 sq solid end darker blue blue lam high res copy
